| Citation: | June-Ho Choi, Myeong Rok Ahn, Chae-Hwi Yoon, Yeon-Su Lim, Jong Ryeol Kim, Hyolin Seong, Chan-Duck Jung, Sang-Mook You, Jonghwa Kim, Younghoon Kim, Hyun Gil Cha, Jae-Won Lee, Hoyong Kim. Enhancing compatibility and biodegradability of polylactic acid/biomass composites through torrefaction of forest residue[J]. Journal of Bioresources and Bioproducts, 2025, 10(1): 51-61. doi: 10.1016/j.jobab.2024.10.003
|
Plastics are widely used in daily life due to their lightweight and convenience. Global plastic production, which reached 450 million tons annually in 2022, is expected to exceed 900 million tons annually by 2045 (Bergmann et al., 2022). However, plastic disposal poses significant environmental challenges, including the emission of toxic substances and greenhouse gases during incineration, contamination of soil and groundwater through landfills, and the formation of plastic islands from indiscriminate dumping (Shen et al., 2020). One of the most critical issues with plastics is their extended biodegradation period, during which they persist in oceans and on land, releasing harmful substances and contributing to long-term pollution (Stubbins et al., 2021).
Despite active regulatory efforts worldwide, the immediate restriction of plastic use is challenging due to the global dependence on these materials (Xanthos & Walker, 2017). A promising solution lies in biodegradable plastics, a subset of bioplastics. By 2025, the biodegradable plastic market is projected to reach 6.73 billion yuan (US dollar), representing 44% of the broader bioplastic market, with polylactic acid (PLA) accounting for 13.9% of the biodegradable plastics segment (Abraham et al., 2021; Taib et al., 2023). Polylactic acid, a polymer derived from the polymerization of lactic acid obtained from renewable sources such as corn or sugarcane, is used in a variety of applications, including disposable products, 3D printing materials, and medical supplies (Taib et al., 2023). However, the degradation of PLA in nature depends significantly on environmental conditions such as temperature, humidity, and the presence of microorganisms (Zaaba and Jaafar, 2020). Under optimal conditions, i.e., sufficient geothermal heat, pressure, humidity from groundwater, and microbes in sediment layers, PLA decomposes naturally (Qi et al., 2017). Yet, outside of these conditions, the biodegradation process may take years or even decades (Xiao et al., 2012).
The PLA biodegradation occurs through several stages: deterioration, biofragmentation, assimilation, and mineralization (Jaiswal et al., 2020). In biofragmentation, the process starts with hydrolysis of the carbonyl group by penetrating water. However, the inherent surface hydrophobicity of PLA delays biodegradation by limiting water infiltration (Li et al., 2023). Additionally, PLA derived from crop starch, such as corn or sugarcane, experiences significant fluctuations in supply chains and raw material costs depending on market conditions, leading to instability in supply and low price competitiveness (Ma et al., 2012). One potential solution to these disadvantages is the fabrication of composite materials incorporating biomass.
Forest residue (FR), an underutilized byproduct of logging and forest management, is often discarded or left on-site. However, its use offers an opportunity to maximize biomass resource efficiency, reducing carbon debt (Tripathi et al., 2019). The FR is also more cost-effective than other lignocellulosic biomass, as it does not require separate cultivation and can be harvested at relatively low costs. Thus, utilizing FR efficiently processes surplus resources generated from forest management, promoting sustainable forest use. Systematic forest management and converting these byproducts into energy or chemical resources not only help maintain forest health but also enhance environmental value (Braghiroli and Passarini, 2020). Using large quantities of unused lignocellulosic biomass in biodegradable plastic composites can reduce resin demand, increase consumer awareness of eco-friendly products, and shorten biodegradation times by promoting moisture penetration and creating more initiation points for biodegradation (Raj et al., 2022). However, PLA/biomass composites often suffer from poor interfacial compatibility due to differences in their surface properties, particularly the hydrophilicity of biomass and the hydrophobicity of PLA, which causes reduced tensile strength (Wang et al., 2021).
To address this issue, the surface properties of biomass can be improved through torrefaction, a process that selectively decomposes the amorphous hemicellulose regions, thereby reducing the energy required for size reduction and facilitating even dispersion in the composite (Niu et al., 2019). Unlike traditional biomass carbonization, torrefaction occurs at lower temperatures, ranging from 200 to 300 ℃ in an oxygen free environment (Javanmard et al., 2023). This technique has been widely used to improve solid fuels for thermal power generation by removing moisture and volatile organic compounds (Abdulyekeen et al., 2021). The growing focus on carbon reduction and renewable energy has spurred recent interest in this field. The changes induced by torrefaction in biomass surface properties and grindability suggest its potential applications in industries beyond fuel, including plastic production (Javanmard et al., 2023). Additionally, utilizing biomass byproducts from forest activities supports resource recycling and contributes to a circular economy, offering environmentally friendly and sustainable solutions for energy and material production.
In this study, PLA was blended with torrefied forest residue (TFR), in which the amorphous regions were selectively decomposed. Torrefaction increased the crystallinity and hydrophobicity of the biomass surface, preventing a decrease in the PLA/biomass composite's physical properties while enhancing its biodegradability by facilitating water penetration.
The FR was obtained from the National Institute of Forest Science, Republic of Korea, and supplied as wood chips. These wood chips were ground using a cutting mill (PULVERISETTE 19, FRITSCH GmbH, Idar-Oberstein, Germany) equipped with a 0.5 mm sieve. The ground material was used for all analysis and experiments except for chemical composition analysis. The resulting wood powder was dried with a moisture content lower than 10% and stored at 4 ℃ until further use. The PLA, processed by mixing NatureWorks Ingeo Biopolymer 4032D and 4060D in a 9꞉1 ratio, was used to blend with the biomass to prepare composites.
The FR was fully dried at 105 ℃ for 24 h before torrefaction. Torrefaction was conducted at 220, 250, and 280 ℃ for 50 min in a carbonization furnace (Drying Engineering Inc., Gwangju, Republic of Korea) under a nitrogen gas flow rate of 50 mL/min and a temperature ramping rate of 3 ℃/min. The torrefied samples were pulverized for 5–15 min at 350 r/min in a planetary ball mill (PM 100, Retsch GmbH, Haan, Germany) using zirconium balls. The milled samples were then passed through a 100 mesh sieve using an electric sieve shaker to obtain fine particles. The torrefied biomass samples were designated as TFR220, TFR250, and TFR280, corresponding to the torrefaction temperatures of 220, 250, and 280 ℃, respectively.
The chemical compositions of FR and TFR were analyzed using National Renewable Energy Laboratory procedures. The samples were ground using a cutting mill (Pulverisette 19, FRITSCH GmbH, Idar-Oberstein, Germany) with a 0.2 mm sieve. High-performance liquid chromatography (Agilent 1200 Infinity, Agilent Technologies Korea Inc., Seoul, Republic of Korea), equipped with an Aminex 87H column (300 mm × 7.8 mm; Bio-Rad Laboratories, Hercules, California, USA), was used to identify monomeric sugars such as glucose, xylose, mannose, galactose, and arabinose, along with sugar derivatives.
The elemental composition of FR and TFR, including carbon, hydrogen, nitrogen, sulfur, and oxygen, was determined using an elemental analyzer (Flash 2000, Thermo Electron Corporation, Waltham, Massachusetts, USA). Oxygen content was calculated by subtracting the weight percentages of C, H, N, and S from the total.
Thermal decomposition characteristics of FR and TFR were investigated using a thermogravimetric analyzer (TGA-Q500, TA Instruments, New Castle, Delaware, USA). Approximately 10 mg of the sample was placed on a platinum plate and heated to 105 ℃ for 15 min to eliminate moisture. Subsequently, the temperature was increased from 105 to 800 ℃ at a rate of 20 ℃/min. After reaching the final temperature, the furnace was maintained at 800 ℃ for 15 min. The samples were then oxidized in air for 10 min. Thermogravimetric data were used to calculate the fixed carbon, volatile matter, and residual ash content based on mass changes during heating.
The surface morphologies of the FR and TFR were examined using field-emission scanning electron microscopy (FE-SEM, SUPRA 55VP, Carl Zeiss, Oberkochen, Germany). For the analysis, fully dried samples were fixed onto aluminium stubs using carbon tape. The samples were then sputter-coated with a Pt-Pd alloy to a thickness of ~10 nm. Surface images were obtained using a 2 kV electron beam to capture detailed structural features.
The water absorption capacities of PLA, FR, and TFR were evaluated following a drying process in an oven at 105 ℃ for 24 h. After drying, the samples were placed in a desiccator containing a 35% NaCl solution to maintain a relative humidity of 70%–80%. The sample weights were measured over 32 h to assess water absorption at specified intervals, allowing for a detailed comparison of the absorption properties.
Prior to processing, both PLA and the biomass were dried separately in a vacuum oven at 60 and 120 ℃, respectively. The PLA and biomass were mechanically mixed and melted to produce a composite containing 20% biomass (w/w, based on composite) using a twin-screw micro-compounder (Haake Minilab II, Thermo Fisher Scientific, Waltham, USA) equipped with an injection molding machine (Haake MiniJet, Thermo Fisher Scientific, Waltham, USA). The composite mixture was thoroughly mixed via internal circulation at 190 ℃ and 50 r/min for 3 min. The resulting mixture was injected into a mold heated to 100 ℃ at 50 MPa for 30 s. Dumbbell-shaped samples were formed according to to ASTM D638-2022 (the Definitive Guide to Plastic Tensile Testing, USA) and conditioned at a constant temperature (≤ 25 ℃) and humidity (≤ 30%) for 24 h. The PLA/biomass composites blended with FR and the respective TFR samples (TFR220, TFR250, and TFR280) were labelled as FR-C, TFR220-C, TFR250-C, and TFR280-C, respectively.
To analyze the fracture surfaces of PLA and the composites, the samples were first frozen in liquid nitrogen and then fractured. The fracture surface morphologies were observed using a field-emission scanning electron microscope (FE-SEM, MIRA3, Tescan, Brno, Czech Republic) with an accelerating voltage of 1 kV and a working distance of 16 mm. Samples were sputter-coated with a Pt-Pd alloy to a thickness of ~10 nm prior to analysis.
The water contact angle of the PLA/biomass composites was measured using a drop shape analyzer (DSA25, KRÜSS, Hamburg, Germany) with the sessile drop method. Water droplets of 10 μL were placed on the surface of the composites, and images were captured for 3 s after deposition to assess the water contact angle.
The tensile strength and elongation of the PLA/biomass composites were determined according to the ASTM D638-2022 using a 100 kN load cell on a universal testing machine (5984, Instron, Norwood, USA). The test was conducted with a 26 mm gauge length between grips and a constant strain rate of 10 mm/min. The tensile strength and elongation at break were calculated as the average of the test results from 10 specimens, excluding the highest and lowest values for accuracy.
The crystallization behavior of neat PLA and PLA/biomass composites was examined using differential scanning calorimetry (DSC, Discovery DSC, TA Instruments, New Castle, USA). All DSC analysis were performed under an N2 flow of 50 mL/min. The first heating scan was conducted over a temperature range below the thermal decomposition threshold at a rate of 10 ℃/min, and the temperature was held for 2 min to eliminate the thermal history. The furnace was then cooled to 20 ℃. In the second heating scan, temperatures ranged from 20 to 200 ℃ at the same heating rate. Thermal properties such as glass transition temperature (Tg), crystallization temperature (Tc), cold crystallization enthalpy (∆Hc), melting temperature (Tm), and melting enthalpy (∆Hm) were derived from the second heating scan curves. X-ray diffraction (XRD) analysis was performed to quantify the crystallinity of neat PLA and PLA/biomass composites. XRD patterns were acquired using an X-ray diffractometer (D8 ADVANCE with DAVINCI, Bruker, Massachusetts, USA) with CuKα radiation (λ = 0.154 06 nm), covering a 2θ range of 0°–75° at a scan speed of 1°/min. The crystallinity index was calculated using the Ruland-Vonk method (Ruland, 1961; Thygesen et al., 2005).
To assess biodegradability, the PLA/biomass composite was cryogenically ground to a particle size of smaller than 50 μm using a freezer mill (SPEX 6875D, SPEX, Metuchen, USA). The ground samples were tested for aerobic biodegradability under composting conditions, in collaboration with the Korea Textile Inspection and Testing Institute, a nationally accredited organization. An official report was issued based on the analysis. Biodegradability tests followed the ISO 14855-1-2012 (Determination of the Ultimate Aerobic Biodegradability of Plastic Materials Under Controlled Composting Conditions-Method by Analysis of Evolved Carbon Dioxide, Switzerland), comparing the degradation of neat PLA and the composite with cellulose (as a standard material) over a 90 d period. The theoretical CO2 output from the test materials was calculated using the following equation (Luo et al., 2019):
| $$ \text { Theoretical } \mathrm{CO}_2 \text { output }=\text { Dry mass of the test material } \times \text { Total organic carbon content } \times \text { Molecular weight ratio of } \mathrm{CO}_2 \text { to } \mathrm{C} $$ | (1) |
The biodegradation rate was calculated using the accumulated CO2 emissions as shown below (Luo et al., 2019):
| $$ \begin{aligned} & \text { Biodegradation rate }=\left(\text { Cumulative } \mathrm{CO}_2 \text { generated from the test material in the composting container }- \text { Average } \mathrm{CO}_2\right. \text { emitted } \\ & \text { from the control sample }) / \text { Theoretical } \mathrm{CO}_2 \text { output } \times 100 \% \end{aligned} $$ | (2) |

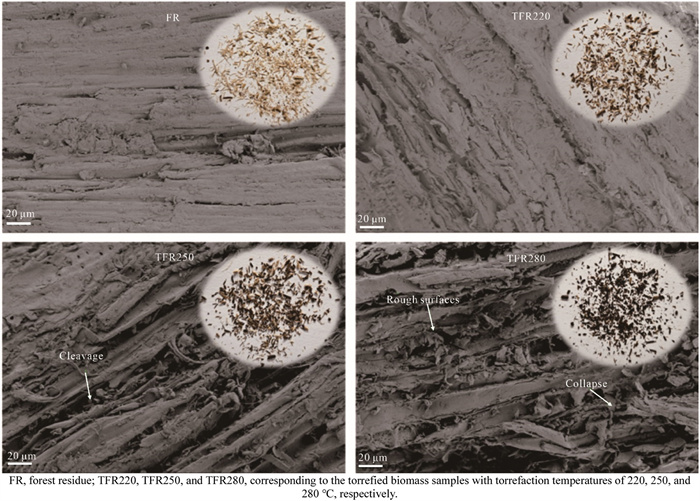

Fig. 1 shows photographs of the FR and TFR at different torrefaction severities. As the torrefaction severity increased, TFR exhibited a darker color, indicative of heat-induced carbonization, along with a noticeable reduction in particle size due to the decomposition of carbohydrates, particularly hemicellulose. The chemical composition and crystallinity of the biomass under varying torrefaction conditions were summarized in Table 1. The degradation of biomass accelerated with increasing torrefaction severity, primarily due to the breakdown of hemicellulose and structural sugars, such as xylan, galactan, and mannan. The FR, predominantly consisting of hardwood species, displayed a higher xylan content compared to its relatively low mannan content. During torrefaction, the xylan content in TFR significantly decreased due to the decomposition of heterogeneous polysaccharides such as glucuronoxylan, highlighting hemicellulose's high susceptibility to thermal degradation (Ozonoh et al., 2020).
| Sample | Structural sugar (%) | Total lignin (%) | Ash (%) | Recovery yield (%) | Crystalline region (%) | Amorphous region (%) | |||
| Glucan | Xylan | Galactan | Mannan | ||||||
| FR | 29.9 ± 1.0 | 10.5 ± 0.4 | 3.6 ± 0.2 | 1.6 ± 0.1 | 27.6 | 1.4 ± 0.1 | – | 24.9 | 75.1 |
| TFR220 | 32.2 ± 0.5 | 10.3 ± 0.4 | 3.5 ± 0.1 | 1.5 ± 0.2 | 37.6 | 0.6 ± 0.0 | 94.7 ± 0.9 | 40.1 | 59.9 |
| TFR250 | 33.3 ± 0.2 | 8.4 ± 0.3 | 3.2 ± 0.2 | 1.4 ± 0.1 | 41.6 | 1.5 ± 0.2 | 88.0 ± 1.0 | 42.5 | 57.5 |
| TFR280 | 32.1 ± 0.6 | 3.1 ± 0.1 | 3.0 ± 0.1 | 0.9 ± 0.1 | 53.1 | 2.0 ± 0.3 | 74.5 ± 1.1 | 35.4 | 64.6 |
| Notes: FR, forest residue; TFR220, TFR250, and TFR280, corresponding to the torrefied biomass samples with torrefaction temperatures of 220, 250, and 280 ℃, respectively. | |||||||||
DownLoad:
CSV
Interestingly, the glucan content showed a different trend compared to xylan, with the highest glucan concentration observed in TFR250. This suggested that as hemicellulose degraded, the relative glucose content increased, but further increased torrefaction severity eventually led to cellulose breakdown (Ong et al., 2021). The degradation of hemicellulose contributes to the rise in relative glucan content, while excessive torrefaction ultimately results in cellulose decomposition (Chen et al., 2019).
Torrefaction-induced changes in chemical composition also affected the morphological structure of the biomass. Fig. 1 illustrates the surface morphology of FR and TFR. During torrefaction, the dense outer surface layer covering the fiber bundles was removed, leading to roughened cell wall surfaces and the formation of porous structures (Ong et al., 2021). As the torrefaction severity increased, the destruction of fiber bundles and the deformation of cell walls became more obvious as seen in Fig. 1. These changes in cell wall structure were largely attributable to alterations in chemical composition during the torrefaction process (Lateef & Ogunsuyi, 2021). The collapse of cell wall structures and the exposure of rough surfaces with fibers and pores during torrefaction can be explained by hemicellulose degradation, a key component of lignocellulosic biomass (Adeleke et al., 2021). Hemicellulose plays an essential role in linking cellulose and lignin through lignin-carbohydrate complexes (Xie et al., 2024). The preferential degradation of hemicellulose, as shown by the chemical composition analysis, occurred before the breakdown of cellulose and lignin during torrefaction, leading to cell wall disruption (Ong et al., 2021). These structural changes are expected to facilitate better resin infiltration during composite formation, improving the physical adhesion between the biomass and the resin.
The crystallinity of biomass also fluctuated in response to torrefaction conditions (Table 1). Following torrefaction, the crystallinity of the biomass increased due to the preferential decomposition of the amorphous regions, which contained both volatile matter and hemicellulose (Cao et al., 2023). However, when torrefaction was performed under more severe conditions, cellulose degradation occurred in both amorphous and crystalline regions, leading to a decrease in the overall crystallinity (Cao et al., 2021).
The effects of torrefaction on the volatile matter, fixed carbon, and ash content were analyzed and shown in Table 2 and Fig. S1. The TFR exhibited lower volatile matter and higher fixed carbon content compared to FR, with these trends becoming more pronounced at higher torrefaction temperatures. The reduction in the volatile matter is largely due to the loss of O-containing functional groups during torrefaction, which decomposes at elevated temperatures (Oyebode & Ogunsuyi, 2021). Additionally, the increase in fixed carbon content is attributed to the higher lignin content in TFR. Lignin, compared to hemicellulose and cellulose, has a higher fixed carbon content due to its dense network of phenolic moieties formed by frequent hydrogen bonding interactions at high temperatures (Zakaria et al., 2023). These findings from the proximate analysis were consistent with the results of the ultimate analysis, which showed that TFR had a higher C content and lower O content than FR, particularly under harsher torrefaction conditions, leading to a reduced O/C ratio (Alvarez-Chavez et al., 2019). During torrefaction, hemicellulose and cellulose, rich in hydroxyl groups, underwent decomposition, particularly O-derived hydroxyl groups and functional groups with low thermal stability. This decomposition results in a lower O/C ratio (Li et al., 2021). Such chemical modifications, including an increase in fixed carbon and a reduction in the O/C ratio, alter the surface properties of biomass, contributing to increased hydrophobicity (Wang et al., 2022).
| Content (%) | FR (%) | TFR (%) | ||
| 220 ℃ | 250 ℃ | 280 ℃ | ||
| Volatile matter | 81.6 | 81 | 78.2 | 71.8 |
| Fixed carbon | 16.5 | 17.2 | 19.9 | 26.3 |
| Ash | 1.9 | 1.8 | 1.9 | 1.9 |
| C | 46.1 | 47.6 | 50.2 | 52.8 |
| H | 6.7 | 6.5 | 6.2 | 6.1 |
| N | 0.8 | 1.2 | 1.3 | 1.5 |
| S | 0.0 | 0.0 | 0.0 | 0.0 |
| O | 46.5 | 44.7 | 42.3 | 39.6 |
| O/C | 1.01 | 0.94 | 0.84 | 0.75 |
DownLoad:
CSV
Fig. 2 illustrates the moisture absorption properties of TFR in comparison to PLA and FR. Biomass is generally hygroscopic and readily absorbs water in environments with high humidity (Yu et al., 2022). The water absorption capacity of biomass is influenced by its components, with cellulose, a polymer of glucose molecules, being insoluble and immiscible in water, yet capable of forming strong hydrogen bonds with water molecules, leading to high water absorption (Mishra et al., 2024). Biomass also contains lignin and hemicellulose, key components of plant cell walls that differ in their water absorption capabilities. Hemicellulose, with numerous O-containing functional groups, has a higher water absorption capacity, while lignin has a comparatively lower capacity (Xu et al., 2023). The overall composition of biomass, including its structural sugars and lignin, plays a significant role in its moisture absorption behavior, and chemical alterations during torrefaction can significantly affect this property.
The PLA showed a gradual and minimal increase in moisture uptake over time. In contrast, FR rapidly absorbed moisture, reaching approximately 11.2% saturation after 16 h, indicating a substantially higher moisture uptake rate and capacity than PLA. The TFR, however, demonstrated a reduction in moisture uptake rate and capacity, with 9.4% saturation after 16 h. This decrease in water absorption was attributed to the increased hydrophobicity of biomass following torrefaction. The decomposition of carbohydrates and the loss of O-containing functional groups during torrefaction weaken the formation of hydrogen bonds between the biomass and water molecules, reducing its water absorption capacity (Yang et al., 2019). Despite this, torrefied biomass still has greater water absorption properties compared to PLA, which may influence the composite's physical properties and biodegradability.
Fig. 3 shows images of neat PLA and PLA/biomass composites along with FE-SEM images of their fracture surfaces. In composites blended with untreated FR (FR-C), the FR particles were clearly distinguishable. However, in composites blended with TFR, the color of the composite darkened as torrefaction severity increased, and the distinction between the TFR particles and PLA became less clear. This can be attributed to the weakening of the biomass's cell wall structure due to torrefaction, making the particles smaller and more easily dispersed during the blending process (Yu et al., 2019). In contrast, the fracture surface of neat PLA, as seen in the FE-SEM image, was very smooth. In the composites, the fracture surfaces exhibit rougher and more irregular textures. The FR composite (FR-C) showed smaller, well-defined pits and a relatively clean surface compared to the TFR composite (TFR220-C and TFR280-C). This was due to the lower compatibility between the surface properties of untreated FR and PLA. The poor interface between FR and PLA led to easier separation upon fracturing, resulting in clean, distinct pits on the fracture surface (Asadollahzadeh et al., 2022). Conversely, the surface properties of TFR, which were modified by the torrefaction process, enhanced compatibility with PLA, making it more difficult for the materials to separate during fracture. As a result, biomass detaches in cohesive masses, leading to larger pits and a more uneven fracture surface (Yang et al., 2024).
Blending materials with different surface properties typically reduces the compatibility and mechanical performance of the resulting composites (Mamunya et al., 2016; Awad et al., 2021). The contact angle of PLA/biomass composites offers insights into surface properties, such as surface energy, which is an indirect indicator of composite compatibility. As surface energy increases, the contact angle decreases, indicating a more hydrophilic surface. Biomass typically has a higher surface energy and is more hydrophilic than PLA (Zouari et al., 2022). Fig. 4a shows that the contact angle of FR-C decreased from 76.4° (neat PLA) to 74.0°, reflecting the influence of hydrophilic functional groups on the biomass surface, which increased surface energy (Silva et al., 2019).
In the case of TFR composites, as torrefaction intensity increased, the contact angle increased, indicating a decrease in surface energy. For example, the TFR220-C composite exhibited a contact angle of 76.1°, similar to that of neat PLA, suggesting improved compatibility due to more similar surface properties (Zuo et al., 2020). However, composites made from biomass torrefied under harsher conditions showed higher contact angles than neat PLA. This could be attributed to the loss of hydrophilic functional groups caused by excessive carbonization during torrefaction (Wei et al., 2020). Consequently, the reduced hydrophilicity of the biomass weakened its compatibility with PLA under more severe torrefaction conditions.
The compatibility between PLA and biomass plays a critical role in determining the mechanical properties of PLA/biomass composites. Improved compatibility enhances the mechanical performance of the composite, while poor compatibility often leads to a reduction in mechanical strength (Han et al., 2020). Fig. 4b shows the tensile strength and elongation at break for PLA/biomass composites containing 20% biomass under different torrefaction conditions. The FR-C composite exhibited a tensile strength of 58.7 MPa and an elongation at break of 1.6%, which were substantially lower than the tensile strength (69.7 MPa) and elongation at break (5.8%) of neat PLA. This reduced performance was attributed to the inadequate compatibility and dispersion of the untreated biomass within the composite, which impeded the uniform distribution of stress under external forces, leading to a decline in strength (Arteaga-Pérez et al., 2015).
However, this mechanical deterioration can be mitigated by modifying the surface characteristics of the biomass through torrefaction. Although most composites displayed low elongation due to the rigid and brittle nature of PLA, the TFR220-C, exhibiting a contact angle similar to neat PLA, demonstrated an improved tensile strength of 62.3 MPa, surpassing that of the FR-C. Torrefaction enhances the dispersion and compatibility of the composite by increasing the hydrophobicity of the biomass surface, thereby promoting better adhesion between the PLA matrix and the biomass (Ke et al., 2022). However, excessive torrefaction can degrade cellulose chains, resulting in weakened mechanical properties of the composite. Severe torrefaction conditions can exacerbate the damage to cellulose, further diminishing the mechanical strength of the composite (Wang et al., 2017). Therefore, torrefaction under optimal conditions improves the dispersion and compatibility of PLA and biomass in the composite, while maintaining mechanical integrity. This approach offers a practical method for utilizing biomass as a bulk-loading filler in PLA composites.
Fig. 5 presents the DSC heat flow curves and XRD patterns of neat PLA and PLA/biomass composites. The DSC heat flow curves revealed that the composites containing heterogeneous materials exhibited slightly lower Tm and slightly higher Tg compared to neat PLA. This shift in thermal properties is likely due to the interference of biomass particles with the arrangement of PLA chains and the intermolecular forces between them (Ruz-Cruz et al., 2022). From a thermodynamic perspective, crystallinity is closely related to crystallization energy, which represents the amount of energy required for the crystallization process (da Cunha et al., 2023). Generally, crystallinity and crystallization energy are proportional, meaning that materials with higher crystallization energy tend to exhibit greater crystallinity.
The Tc of neat PLA was 101.2 ℃, with a crystallization enthalpy (∆Hc) of 21.5 J/g (Fig. 5a). However, all PLA/biomass composites exhibited lower crystallization temperatures and enthalpies compared to neat PLA, regardless of the torrefaction conditions. In materials with lower crystallinity, the alignment of molecular chains is more hindered, necessitating weaker crystallization energy. Conversely, in highly crystalline materials, the increase in intermolecular interactions increases the overall energy required for crystallization. This phenomenon was further illustrated by the ∆Hm values. Melting enthalpy is often used as a predictor of material crystallinity. Neat PLA exhibited a ∆Hm of 37.0 J/g, higher than that of FR-C (30.3 J/g) and all TFR-C, which were below 30 J/g. Typically, materials with higher crystallinity have a denser molecular structure and stronger intermolecular bonds, requiring more energy to melt. These results suggested that torrefaction reduced the crystallinity of the biomass, which in turn affected the overall thermal and biodegradation properties of the PLA/biomass composites.
This phenomenon was further validated by the XRD patterns of the PLA/biomass composites (Fig. 5b). The most characteristic peak indicating the crystalline structure of PLA appeared at 2θ of 16.7°, corresponding to a crystallinity of 12.8%. This peak is associated with the α-form crystal structure, one of the stable crystalline forms of PLA (Liu et al., 2023). In contrast, the XRD patterns of the PLA/biomass composites show a blunted peak at 2θ of 16.7°, indicating a reduction in crystallinity. Notably, FR-C exhibited the lowest crystallinity (2.9%), while the TFR-C composites showed a slight improvement in crystallinity. This suggested that the addition of biomass disrupted the crystallization of PLA, increasing the crystallization energy of the composite and ultimately leading to a decrease in its overall crystallinity.
Fig. 6 illustrates the biodegradability of neat PLA and TFR220-C. The standard material (cellulose) reached 100% biodegradability after 90 d, confirming the validity of the biodegradability measurement method. Neat PLA demonstrated a biodegradability of 33.3% at 45 d and 88.8% at 90 d. In contrast, TFR220-C showed a faster initial decomposition rate, reaching 54.0% after 45 d and 94.9% after 90 d. Biomass, being biodegradable in natural environments, facilitates the activities of microorganisms and enzymes, which is further enhanced by the water absorption properties of biomass. This increased water permeability helps initiate hydrolysis in the composite, accelerating the biodegradation process. Furthermore, the reduction in crystallinity observed in the composite contributed to the enhanced biodegradation. Typically, crystalline regions have denser molecular structures that slow down biodegradation by hindering access to microorganisms and enzymes. As shown in Fig. 5, the addition of TFR220 disrupted crystallinity formation, which increased the initial degradation rate and improved overall biodegradability.
This study investigated the effects of torrefaction on FR and its application as a bulk-loading filler in PLA/biomass composites. The following key findings emerged: (1) Torrefaction at various temperatures (220, 250, and 280 ℃) altered the chemical composition of FR by increasing fixed carbon and reducing volatile matter, while also improving crystallinity; (2) The process enhanced the hydrophobicity of FR, which improved compatibility in PLA/biomass composites; (3) The TFR improved the tensile strength of the composites, although excessive torrefaction negatively impacted mechanical properties; (4) The addition of TFR accelerated the biodegradability of PLA/biomass composites by reducing crystallinity and increasing water permeability, leading to faster decomposition compared to neat PLA. These results demonstrated the potential of TFR in creating eco-friendly and biodegradable materials for sustainable applications.
Acknowledgments: This work was supported by the Korea Research Institute of Chemical Technology (KRICT) Project (No. KS2442-10) and the R & D Program (No. 20017973) of the Ministry of Trade, Industry, and Energy (MOTIE/KEIT).|
Abdulyekeen, K.A., Umar, A.A., Patah, M.F.A., Daud, W.M.A.W., 2021. Torrefaction of biomass: production of enhanced solid biofuel from municipal solid waste and other types of biomass. Renew. Sustain. Energy Rev. 150, 111436. doi: 10.1016/j.rser.2021.111436
|
|
Abraham, A., Park, H., Choi, O., Sang, B.I., 2021. Anaerobic co-digestion of bioplastics as a sustainable mode of waste management with improved energy production - A review. Bioresour. Technol. 322, 124537. doi: 10.1016/j.biortech.2020.124537
|
|
Adeleke, A.A., Odusote, J.K., Ikubanni, P.P., Lasode, O.A., Malathi, M., Paswan, D., 2021. Essential basics on biomass torrefaction, densification and utilization. Int. J. Energy Res. 45, 1375–1395. doi: 10.1002/er.5884
|
|
Alvarez-Chavez, B.J., Godbout, S., Palacios-Rios, J.H., Le Roux, É., Raghavan, V., 2019. Physical, chemical, thermal and biological pre-treatment technologies in fast pyrolysis to maximize bio-oil quality: a critical review. Biomass Bioenergy 128, 105333. doi: 10.1016/j.biombioe.2019.105333
|
|
Arteaga-Pérez, L.E., Segura, C., Bustamante-García, V., Gómez Cápiro, O., Jiménez, R., 2015. Torrefaction of wood and bark from Eucalyptus globulus and Eucalyptus nitens: focus on volatile evolution vs feasible temperatures. Energy 93, 1731–1741. doi: 10.1016/j.energy.2015.10.007
|
|
Asadollahzadeh, M., Mahboubi, A., Taherzadeh, M.J., Åkesson, D., Lennartsson, P.R., 2022. Application of fungal biomass for the development of new polylactic acid-based biocomposites. Polymers 14, 1738. doi: 10.3390/polym14091738
|
|
Awad, S., Hamouda, T., Midani, M., Zhou, Y.H., Katsou, E., Fan, M.Z., 2021. Date palm fibre geometry and its effect on the physical and mechanical properties of recycled polyvinyl chloride composite. Ind. Crops Prod. 174, 114172. doi: 10.1016/j.indcrop.2021.114172
|
|
Bergmann, M., Almroth, B.C., Brander, S.M., Dey, T., Green, D.S., Gundogdu, S., Krieger, A., Wagner, M., Walker, T.R., 2022. A global plastic treaty must cap production. Science 376, 469–470. doi: 10.1126/science.abq0082
|
|
Braghiroli, F.L., Passarini, L., 2020. Valorization of biomass residues from forest operations and wood manufacturing presents a wide range of sustainable and innovative possibilities. Curr. For. Rep. 6, 172–183. doi: 10.1007/s40725-020-00112-9
|
|
Cao, X.B., Luo, Q.L., Song, F.Y., Liu, G.R., Chen, S.Y., Li, Y.J., Li, X., Lu, Y., 2023. Effects of oxidative torrefaction on the physicochemical properties and pyrolysis products of hemicellulose in bamboo processing residues. Ind. Crops Prod. 191, 115986. doi: 10.1016/j.indcrop.2022.115986
|
|
Cao, X.B., Zhang, J., Cen, K.H., Chen, F., Chen, D.Y., Li, Y.J., 2021. Investigation of the relevance between thermal degradation behavior and physicochemical property of cellulose under different torrefaction severities. Biomass Bioenergy 148, 106061. doi: 10.1016/j.biombioe.2021.106061
|
|
Chen, W.H., Wang, C.W., Ong, H.C., Show, P.L., Hsieh, T.H., 2019. Torrefaction, pyrolysis and two-stage thermodegradation of hemicellulose, cellulose and lignin. Fuel 258, 116168. doi: 10.1016/j.fuel.2019.116168
|
|
da Cunha, R.B., Pê, F.R., de Figueiredo Brito, G., de Mélo, T.J.A., 2023. Influence of crystallization on the shape memory effect of poly (lactic acid). Smart Mater. Struct. 32, 085016. doi: 10.1088/1361-665X/ace226
|
|
Han, Y., Shi, J.W., Mao, L.X., Wang, Z., Zhang, L.Q., 2020. Improvement of compatibility and mechanical performances of PLA/PBAT composites with epoxidized soybean oil as compatibilizer. Ind. Eng. Chem. Res. 59, 21779–21790. doi: 10.1021/acs.iecr.0c04285
|
|
Jaiswal, S., Sharma, B., Shukla, P., 2020. Integrated approaches in microbial degradation of plastics. Environ. Technol. Innov. 17, 100567. doi: 10.1016/j.eti.2019.100567
|
|
Javanmard, A., Abdul Patah, M.F., Zulhelmi, A., Daud, W.M.A.W., 2023. A comprehensive overview of the continuous torrefaction method: operational characteristics, applications, and challenges. J. Energy Inst. 108, 101199. doi: 10.1016/j.joei.2023.101199
|
|
Ke, L., Shang, H., Tang, M.K., Li, X.Y., Jiang, L., Lu, S.J., Tang, D.Y., Huang, D.H., Zhu, J.T., Liu, C.H., Xu, H., He, X.J., Gao, J.F., 2022. High-heat and UV-barrier poly(lactic acid) by microwave-assisted functionalization of waste natural fibers. Int. J. Biol. Macromol. 220, 827–836. doi: 10.1016/j.ijbiomac.2022.08.114
|
|
Lateef, F.A., Ogunsuyi, H.O., 2021. Jatropha curcas L. biomass transformation via torrefaction: surface chemical groups and morphological characterization. Curr. Res. Green Sustain. Chem. 4, 100142. doi: 10.1016/j.crgsc.2021.100142
|
|
Li, C., Zhu, L., Ma, Z.Q., Yang, Y.Y., Cai, W., Ye, J.W., Qian, J., Liu, X.H., Zuo, Z.J., 2021. Optimization of the nitrogen and oxygen element distribution in microalgae by ammonia torrefaction pretreatment and subsequent fast pyrolysis process for the production of N-containing chemicals. Bioresour. Technol. 321, 124461. doi: 10.1016/j.biortech.2020.124461
|
|
Li, X.R., Lin, Y., Liu, M.L., Meng, L.P., Li, C.F., 2023. A review of research and application of polylactic acid composites. J. Appl. Polym. Sci. 140, e53477. doi: 10.1002/app.53477
|
|
Liu, G.H., Guan, J., Wang, X.F., Yu, J.Y., Ding, B., 2023. Polylactic acid (PLA) melt-blown nonwovens with superior mechanical properties. ACS Sustain. Chem. Eng. 11, 4279–4288. doi: 10.1021/acssuschemeng.3c00159
|
|
Luo, Y.B., Lin, Z.C., Guo, G., 2019. Biodegradation assessment of poly (lactic acid) filled with functionalized titania nanoparticles (PLA/TiO2) under compost conditions. Nanoscale Res. Lett. 14, 56. doi: 10.4324/9780429431777-3
|
|
Ma, P.M., Hristova-Bogaerds, D.G., Schmit, P., Goossens, J.G.P., Lemstra, P.J., 2012. Tailoring the morphology and properties of poly(lactic acid)/poly(ethylene)-co-(vinyl acetate)/starch blends via reactive compatibilization. Polym. Int. 61, 1284–1293. doi: 10.1002/pi.4204
|
|
Mamunya, Y., Levchenko, V., Boiteux, G., Seytre, G., Zanoaga, M., Tanasa, F., Lebedev, E., 2016. Controlling morphology, electrical, and mechanical properties of polymer blends by heterogeneous distribution of carbon nanotubes. Polym. Compos. 37, 2467–2477. doi: 10.1002/pc.23434
|
|
Mishra, K., Siwal, S.S., Sithole, T., Singh, N., Hart, P., Thakur, V.K., 2024. Biorenewable materials for water remediation: the central role of cellulose in achieving sustainability. J. Bioresour. Bioprod. 9, 253–282.
|
|
Niu, Y.Q., Lv, Y., Lei, Y., Liu, S.Q., Liang, Y., Wang, D.H., Hui, S.E., 2019. Biomass torrefaction: properties, applications, challenges, and economy. Renew. Sustain. Energy Rev. 115, 109395. doi: 10.1016/j.rser.2019.109395
|
|
Ong, H.C., Yu, K.L., Chen, W.H., Pillejera, M.K., Bi, X.T., Tran, K.Q., Pétrissans, A., Pétrissans, M., 2021. Variation of lignocellulosic biomass structure from torrefaction: a critical review. Renew. Sustain. Energy Rev. 152, 111698. doi: 10.1016/j.rser.2021.111698
|
|
Oyebode, W.A., Ogunsuyi, H.O., 2021. Impact of torrefaction process temperature on the energy content and chemical composition of stool tree (Alstonia congenisis Engl) woody biomass. Curr. Res. Green Sustain. Chem. 4, 100115. doi: 10.1016/j.crgsc.2021.100115
|
|
Ozonoh, M., Oboirien, B.O., Daramola, M.O., 2020. Optimization of process variables during torrefaction of coal/biomass/waste tyre blends: application of artificial neural network & response surface methodology. Biomass Bioenergy 143, 105808. doi: 10.1016/j.biombioe.2020.105808
|
|
Qi, X., Ren, Y.W., Wang, X.Z., 2017. New advances in the biodegradation of Poly(lactic) acid. Int. Biodeterior. Biodegrad. 117, 215–223. doi: 10.1016/j.ibiod.2017.01.010
|
|
Raj, T., Chandrasekhar, K., Naresh Kumar, A., Kim, S.H., 2022. Lignocellulosic biomass as renewable feedstock for biodegradable and recyclable plastics production: a sustainable approach. Renew. Sustain. Energy Rev. 158, 112130. doi: 10.1016/j.rser.2022.112130
|
|
Ruland, W., 1961. X-ray determination of crystallinity and diffuse disorder scattering. Acta Crystallogr. 14, 1180–1185. doi: 10.1107/S0365110X61003429
|
|
Ruz-Cruz, M.A., Herrera-Franco, P.J., Flores-Johnson, E.A., Moreno-Chulim, M.V., Galera-Manzano, L.M., Valadez-González, A., 2022. Thermal and mechanical properties of PLA-based multiscale cellulosic biocomposites. J. Mater. Res. Technol. 18, 485–495. doi: 10.1016/j.jmrt.2022.02.072
|
|
Shen, M.C., Huang, W., Chen, M., Song, B., Zeng, G.M., Zhang, Y.X., 2020. micro)plastic crisis: un-ignorable contribution to global greenhouse gas emissions and climate change. J. Clean. Prod. 254, 120138. doi: 10.1016/j.jclepro.2020.120138
|
|
Silva, C.G., Campini, P.A.L., Rocha, D.B., Rosa, D.S., 2019. The influence of treated Eucalyptus microfibers on the properties of PLA biocomposites. Compos. Sci. Technol. 179, 54–62. doi: 10.18316/rcd.v10i22.3436
|
|
Stubbins, A., Law, K.L., Muñoz, S.E., Bianchi, T.S., Zhu, L., 2021. Plastics in the earth system. Science 373, 51–55. doi: 10.1126/science.abb0354
|
|
Taib, N.A.A.B., Rahman, M.R., Huda, D., Kuok, K.K., Hamdan, S., Bakri, M.K.B., Julaihi, M.R.M.B., Khan, A., 2023. A review on poly lactic acid (PLA) as a biodegradable polymer. Polym. Bull. 80, 1179–1213. doi: 10.1007/s00289-022-04160-y
|
|
Thygesen, A., Oddershede, J., Lilholt, H., Thomsen, A.B., Ståhl, K., 2005. On the determination of crystallinity and cellulose content in plant fibres. Cellulose 12, 563–576. doi: 10.1007/s10570-005-9001-8
|
|
Tripathi, N., Hills, C.D., Singh, R.S., Atkinson, C.J., 2019. Biomass waste utilisation in low-carbon products: harnessing a major potential resource. npj Clim. Atmos. Sci. 2, 35. doi: 10.1038/s41612-019-0093-5
|
|
Wang, S.R., Dai, G.X., Ru, B., Zhao, Y., Wang, X.L., Xiao, G., Luo, Z.Y., 2017. Influence of torrefaction on the characteristics and pyrolysis behavior of cellulose. Energy 120, 864–871. doi: 10.1016/j.energy.2016.11.135
|
|
Wang, W., Ye, G.C., Fan, D.P., Lu, Y., Shi, P., Wang, X., Bateer, B., 2021. Photo-oxidative resistance and adjustable degradation of poly-lactic acid (PLA) obtained by biomass addition and interfacial construction. Polym. Degrad. Stab. 194, 109762. doi: 10.1016/j.polymdegradstab.2021.109762
|
|
Wang, Z.Z., Xie, K., Zhu, W.K., Zhang, L., Zhao, Z., Xu, L.F., Yang, J.C., Shen, B.X., 2022. Effects of oxygen deficient and flue gas torrefaction on the surface property and structural feature of typical agriculture waste: rice husk. Fuel 327, 125211. doi: 10.1016/j.fuel.2022.125211
|
|
Wei, Z.Z., Xiong, D.Y., Duan, P.Z., Ding, S.L., Li, Y.L., Li, L.S., Niu, P.R., Chen, X.S., 2020. Preparation of carbon-based solid acid catalysts using rice straw biomass and their application in hydration of 𝛼-pinene. Catalysts 10, 213. doi: 10.3390/catal10020213
|
|
Xanthos, D., Walker, T.R., 2017. International policies to reduce plastic marine pollution from single-use plastics (plastic bags and microbeads): a review. Mar. Pollut. Bull. 118, 17–26. doi: 10.1016/j.marpolbul.2017.02.048
|
|
Xiao, L., Wang, B., Yang, G., Gauthier, M., 2012. Poly(lactic acid)-based biomaterials: synthesis, modification and applications. Biomed. Sci. Eng. Technol. 11, 247–282.
|
|
Xie, D., Liu, Z.L., Cao, Y.F., Yang, S.I., Su, C., Li, M., 2024. Improving antioxidant activities of water-soluble lignin-carbohydrate complex isolated from wheat stalk through prolonging ball-milling pretreatment and homogeneous extraction. J. Bioresour. Bioprod. 9, 113–125.
|
|
Xu, Z.X., Li, J., Li, P.P., Cai, C.G., Chen, S.T., Ding, B.N., Liu, S.M., Ge, M.S., Jin, M.J., 2023. Efficient lignin biodegradation triggered by alkali-tolerant ligninolytic bacteria through improving lignin solubility in alkaline solution. J. Bioresour. Bioprod. 8, 461–477.
|
|
Yang, Y., Sun, M.M., Zhang, M., Zhang, K., Wang, D.H., Lei, C., 2019. A fundamental research on synchronized torrefaction and pelleting of biomass. Renew. Energy 142, 668–676. doi: 10.1016/j.renene.2019.04.112
|
|
Yang, Y.Q., Wan, H., Wang, B.W., Wang, B., Chen, K., Tan, H.Y., Sun, C., Zhang, Y.H., 2024. Preparation and properties of bamboo fiber/polylactic acid composite modified with polycarbodiimide. Ind. Crops Prod. 218, 118829. doi: 10.1016/j.indcrop.2024.118829
|
|
Yu, S., Park, J., Kim, M., Kim, H., Ryu, C., Lee, Y., Yang, W., Jeong, Y.G., 2019. Improving energy density and grindability of wood pellets by dry torrefaction. Energy Fuels 33, 8632–8639. doi: 10.1021/acs.energyfuels.9b01086
|
|
Yu, Y., Wu, J., Ren, X.Y., Lau, A., Rezaei, H., Takada, M., Bi, X.T., Sokhansanj, S., 2022. Steam explosion of lignocellulosic biomass for multiple advanced bioenergy processes: a review. Renew. Sustain. Energy Rev. 154, 111871. doi: 10.1016/j.rser.2021.111871
|
|
Zaaba, N.F., Jaafar, M., 2020. A review on degradation mechanisms of polylactic acid: hydrolytic, photodegradative, microbial, and enzymatic degradation. Polym. Eng. Sci. 60, 2061–2075. doi: 10.1002/pen.25511
|
|
Zakaria, M.R., Ahmad Farid, M.A., Andou, Y., Ramli, I., Ali Hassan, M., 2023. Production of biochar and activated carbon from oil palm biomass: current status, prospects, and challenges. Ind. Crops Prod. 199, 116767. doi: 10.1016/j.indcrop.2023.116767
|
|
Zouari, M., Devallance, D.B., Marrot, L., 2022. Effect of biochar addition on mechanical properties, thermal stability, and water resistance of hemp-polylactic acid (PLA) composites. Materials 15, 2271 (Basel). doi: 10.3390/ma15062271
|
|
Zuo, Y., Chen, K., Li, P., He, X., Li, W., Wu, Y., 2020. Effect of nano-SiO2 on the compatibility interface and properties of polylactic acid-grafted-bamboo fiber/polylactic acid composite. Int. J. Biol. Macromol. 157, 177–186. doi: 10.18282/le.v9i6.1336
|
| [1] | Hye Jee Kang, Yeon Ju Lee, Jin Kyoung Lee, Irnia Nurika, Sri Suhartini, Deokyeong Choe, Dong Hyun Kim, Hoon Choi, Natasha P. Murphy, Ho Yong Kim, Young Hoon Jung. Production of chitosan-based composite film reinforced with lignin-rich lignocellulose nanofibers from rice husk[J]. Journal of Bioresources and Bioproducts, 2024, 9(2): 174-184. doi: 10.1016/j.jobab.2024.03.002 |
| [2] | Lansheng Wei, Weijie Deng, Shanshan Li, Zhengguo Wu, Jihai Cai, Jiwen Luo. Sandwich-like chitosan porous carbon Spheres/MXene composite with high specific capacitance and rate performance for supercapacitors[J]. Journal of Bioresources and Bioproducts, 2022, 7(1): 63-72. doi: 10.1016/j.jobab.2021.10.001 |
| [3] | Jingwen Shao, Yong Ni, Lifeng Yan. Oxidation of Furfural to Maleic Acid and Fumaric Acid in Deep Eutectic Solvent (DES) under Vanadium Pentoxide Catalysis[J]. Journal of Bioresources and Bioproducts, 2021, 6(1): 39-44. doi: 10.1016/j.jobab.2021.02.005 |
| [4] | Atiya Fatima, Yasir Sumayia, Mohd.Shariq Khan, Sehrish Manan, Muhammad Wajid Ullah, Mazhar Ul-Islam. Plant Extract-loaded Bacterial Cellulose Composite Membrane for Potential Biomedical Applications[J]. Journal of Bioresources and Bioproducts, 2021, 6(1): 26-32. doi: 10.1016/j.jobab.2020.11.002 |
| [5] | Bricard Mbituyimana, Lin Mao, Sanming Hu, Muhammad Wajid Ullah, Kun Chen, Lina Fu, Weiwei Zhao, Zhijun Shi, Guang Yang. Bacterial cellulose/glycolic acid/glycerol composite membrane as a system to deliver glycolic acid for anti-aging treatment[J]. Journal of Bioresources and Bioproducts, 2021, 6(2): 129-141. doi: 10.1016/j.jobab.2021.02.003 |
| [6] | Feixiang Guan, Zhaoping Song, Furong Xin, Huili Wang, Dehai Yu, Guodong Li, Wenxia Liu. Preparation of hydrophobic transparent paper via using polydi-methylsiloxane as transparent agent[J]. Journal of Bioresources and Bioproducts, 2020, 5(1): 37-43. doi: 10.1016/j.jobab.2020.03.004 |
| [7] | H A AJIMOTOKAN, S E IBITOYE, J K ODUSOTE, O A ADESOYE, P O OMONIYI. Physico-mechanical Properties of Composite Briquettes from Corncob and Rice Husk[J]. Journal of Bioresources and Bioproducts, 2019, 4(3): 159-165. doi: 10.12162/jbb.v4i3.004 |
| [8] | Xiaojun YANG, Xiaolan TANG, Lan MA, Youfu SUN. Sound Insulation Performance of Structural Wood Wall Integrated with Wood Plastic Composite[J]. Journal of Bioresources and Bioproducts, 2019, 4(2): 111-118. doi: 10.21967/jbb.v4i2.215 |
| [9] | Qiheng TANG, Lu FANG, Wenjing GUO. Effects of Bamboo Fiber Length and Loading on Mechanical, Thermal and Pulverization Properties of Phenolic Foam Composites[J]. Journal of Bioresources and Bioproducts, 2019, 4(1): 51-59. doi: 10.21967/jbb.v4i1.184 |
| [10] | Shuaishuai Yang, Haichao Li, Huizhen Sun. Effect of microfibrillated cellulose (MFC) on the properties of gelatin based composite films[J]. Journal of Bioresources and Bioproducts, 2018, 3(3): 107-111. doi: 10.21967/jbb.v3i3.157 |
| [11] | Huixia Lan, Hao Zhang, Da Yang, Shiwen Geng, Wei Wang, Shanhong Lan. Impact of shock loading with mid-stage pulping wastewater on a magnetic micro-aerobic activated sludge system[J]. Journal of Bioresources and Bioproducts, 2018, 3(2): 53-58. doi: 10.21967/jbb.v3i2.93 |
| [12] | Yangmei Chen, Hongxiang Zhu, Jianhua Xiong, Cunzhi Zhang, Yunhua Li. Preparation and application of novel chitosan-cellulose composite materials to adsorb Pb(Ⅱ) and Cr(Ⅵ) ions from water[J]. Journal of Bioresources and Bioproducts, 2017, 2(4): 175-183. doi: 10.21967/jbb.v2i4.111 |
| [13] | Tian He, Mingyou Liu. Recovery of calcium carbonate waste as paper filler in the causticizing process of bamboo kraft pulping[J]. Journal of Bioresources and Bioproducts, 2017, 2(2): 82-88. doi: 10.21967/jbb.v2i2.147 |
| [14] | Baobin Wang, Guihua Yang, Qiang Wang, Lucian A. Lucia, Tingpeng Jia, Jiachuan Chen, Guigan Fang. Wet oxidation of activated carbon for enhanced adsorptive removal of lignin from the prehydrolysis liquor of kraft-based dissolving pulp production in an integrated forest biorefinery[J]. Journal of Bioresources and Bioproducts, 2017, 2(2): 73-81. doi: 10.21967/jbb.v2i2.66 |
| [15] | Bailiang Xu, Wenliang Wang, Sufeng Zhang. 2017 International conference on forest & paper new technology and research[J]. Journal of Bioresources and Bioproducts, 2017, 2(4): 184-185. doi: 10.21967/jbb.v2i4.162 |
| [16] | Huifang Zhao, Lizheng Sha. Effect of surface modification of ammonium polyphosphate-diatomite composite filler on the flame retardancy and smoke suppression of cellulose paper[J]. Journal of Bioresources and Bioproducts, 2017, 2(1): 30-35. doi: 10.21967/jbb.v2i1.134 |
| [17] | Hongmei Deng, Chun Wang, Huining Xiao, Avik Khan. Preparation and chemical characterization of banana/orange composite wine[J]. Journal of Bioresources and Bioproducts, 2016, 1(2): 74-79. doi: 10.21967/jbb.v1i2.45 |
| [18] | Wenhang Wang, Yabin Wang, Yanan Wang, Xiaowei Zhang, Xiao Wang, Guixian Gao. Fabrication and characterization of microfibrillated cellulose and collagen composite films[J]. Journal of Bioresources and Bioproducts, 2016, 1(4): 162-168. doi: 10.21967/jbb.v1i4.54 |
| [19] | Xian Lu, Mingyou Liu, Zhibin He. Effect of magnesium hydroxide as cigarette paper filler to reduce cigarette smoke toxicity[J]. Journal of Bioresources and Bioproducts, 2016, 1(3): 152-158. doi: 10.21967/jbb.v1i3.52 |
| [20] | Kai Liu, Xinxing Lin, Lihui Chen, Liulian Huang. Preparation of guanidine-modified starch for antimicrobial paper[J]. Journal of Bioresources and Bioproducts, 2016, 1(1): 3-6. doi: 10.21967/jbb.v1i1.39 |
| 1. | Lim, H., Jung, S., Kim, S. et al. Torrefied hemp fiber as a sustainable reinforcement for biodegradable PHA composites: enhancing interfacial compatibility and environmental stability. Composites Part B Engineering, 2025, 304: 112653.  | |
| 2. | Sun, M., Zhao, Y., Tian, H. et al. Bimodal structure in electrospun Zein/PLA-chitosan films with enhanced filtration efficiency and low pressure drop. Colloids and Surfaces A Physicochemical and Engineering Aspects, 2025, 711: 136380. | |
| 3. | Dai, Y., Wang, X., Zhu, Y. et al. Impacts of combined pretreatments of torrefaction and its liquid products washing on the chemical looping gasification characteristics of agricultural straw driven by iron-rich sludge ash as waste-based oxygen carrier. Energy, 2025, 314: 134312. | |
| 4. | Roman, K., Grzegorzewska, E. Biomass Briquetting Technology for Sustainable Energy Solutions: Innovations in Forest Biomass Utilization. Energies, 2024, 17(24): 6392. |
Figures(6) / Tables(2)
WeChat: JournalBandBCopyright © 2019 Editorial Office of Journal of Bioresources and Bioproducts
Supported by: Beijing Renhe Information Technology Co. Ltd support: info@rhhz.net
June-Ho Choi, Myeong Rok Ahn, Chae-Hwi Yoon, Yeon-Su Lim, Jong Ryeol Kim, Hyolin Seong, Chan-Duck Jung, Sang-Mook You, Jonghwa Kim, Younghoon Kim, Hyun Gil Cha, Jae-Won Lee, Hoyong Kim. Enhancing compatibility and biodegradability of polylactic acid/biomass composites through torrefaction of forest residue[J]. Journal of Bioresources and Bioproducts, 2025, 10(1): 51-61. doi: 10.1016/j.jobab.2024.10.003
| Sample | Structural sugar (%) | Total lignin (%) | Ash (%) | Recovery yield (%) | Crystalline region (%) | Amorphous region (%) | |||
| Glucan | Xylan | Galactan | Mannan | ||||||
| FR | 29.9 ± 1.0 | 10.5 ± 0.4 | 3.6 ± 0.2 | 1.6 ± 0.1 | 27.6 | 1.4 ± 0.1 | – | 24.9 | 75.1 |
| TFR220 | 32.2 ± 0.5 | 10.3 ± 0.4 | 3.5 ± 0.1 | 1.5 ± 0.2 | 37.6 | 0.6 ± 0.0 | 94.7 ± 0.9 | 40.1 | 59.9 |
| TFR250 | 33.3 ± 0.2 | 8.4 ± 0.3 | 3.2 ± 0.2 | 1.4 ± 0.1 | 41.6 | 1.5 ± 0.2 | 88.0 ± 1.0 | 42.5 | 57.5 |
| TFR280 | 32.1 ± 0.6 | 3.1 ± 0.1 | 3.0 ± 0.1 | 0.9 ± 0.1 | 53.1 | 2.0 ± 0.3 | 74.5 ± 1.1 | 35.4 | 64.6 |
| Notes: FR, forest residue; TFR220, TFR250, and TFR280, corresponding to the torrefied biomass samples with torrefaction temperatures of 220, 250, and 280 ℃, respectively. | |||||||||
DownLoad:
CSV
| Content (%) | FR (%) | TFR (%) | ||
| 220 ℃ | 250 ℃ | 280 ℃ | ||
| Volatile matter | 81.6 | 81 | 78.2 | 71.8 |
| Fixed carbon | 16.5 | 17.2 | 19.9 | 26.3 |
| Ash | 1.9 | 1.8 | 1.9 | 1.9 |
| C | 46.1 | 47.6 | 50.2 | 52.8 |
| H | 6.7 | 6.5 | 6.2 | 6.1 |
| N | 0.8 | 1.2 | 1.3 | 1.5 |
| S | 0.0 | 0.0 | 0.0 | 0.0 |
| O | 46.5 | 44.7 | 42.3 | 39.6 |
| O/C | 1.01 | 0.94 | 0.84 | 0.75 |
DownLoad:
CSV
| Sample | Structural sugar (%) | Total lignin (%) | Ash (%) | Recovery yield (%) | Crystalline region (%) | Amorphous region (%) | |||
| Glucan | Xylan | Galactan | Mannan | ||||||
| FR | 29.9 ± 1.0 | 10.5 ± 0.4 | 3.6 ± 0.2 | 1.6 ± 0.1 | 27.6 | 1.4 ± 0.1 | – | 24.9 | 75.1 |
| TFR220 | 32.2 ± 0.5 | 10.3 ± 0.4 | 3.5 ± 0.1 | 1.5 ± 0.2 | 37.6 | 0.6 ± 0.0 | 94.7 ± 0.9 | 40.1 | 59.9 |
| TFR250 | 33.3 ± 0.2 | 8.4 ± 0.3 | 3.2 ± 0.2 | 1.4 ± 0.1 | 41.6 | 1.5 ± 0.2 | 88.0 ± 1.0 | 42.5 | 57.5 |
| TFR280 | 32.1 ± 0.6 | 3.1 ± 0.1 | 3.0 ± 0.1 | 0.9 ± 0.1 | 53.1 | 2.0 ± 0.3 | 74.5 ± 1.1 | 35.4 | 64.6 |
| Notes: FR, forest residue; TFR220, TFR250, and TFR280, corresponding to the torrefied biomass samples with torrefaction temperatures of 220, 250, and 280 ℃, respectively. | |||||||||
| Content (%) | FR (%) | TFR (%) | ||
| 220 ℃ | 250 ℃ | 280 ℃ | ||
| Volatile matter | 81.6 | 81 | 78.2 | 71.8 |
| Fixed carbon | 16.5 | 17.2 | 19.9 | 26.3 |
| Ash | 1.9 | 1.8 | 1.9 | 1.9 |
| C | 46.1 | 47.6 | 50.2 | 52.8 |
| H | 6.7 | 6.5 | 6.2 | 6.1 |
| N | 0.8 | 1.2 | 1.3 | 1.5 |
| S | 0.0 | 0.0 | 0.0 | 0.0 |
| O | 46.5 | 44.7 | 42.3 | 39.6 |
| O/C | 1.01 | 0.94 | 0.84 | 0.75 |
DownLoad:
